Technische Daten
| Motor und Akku | |

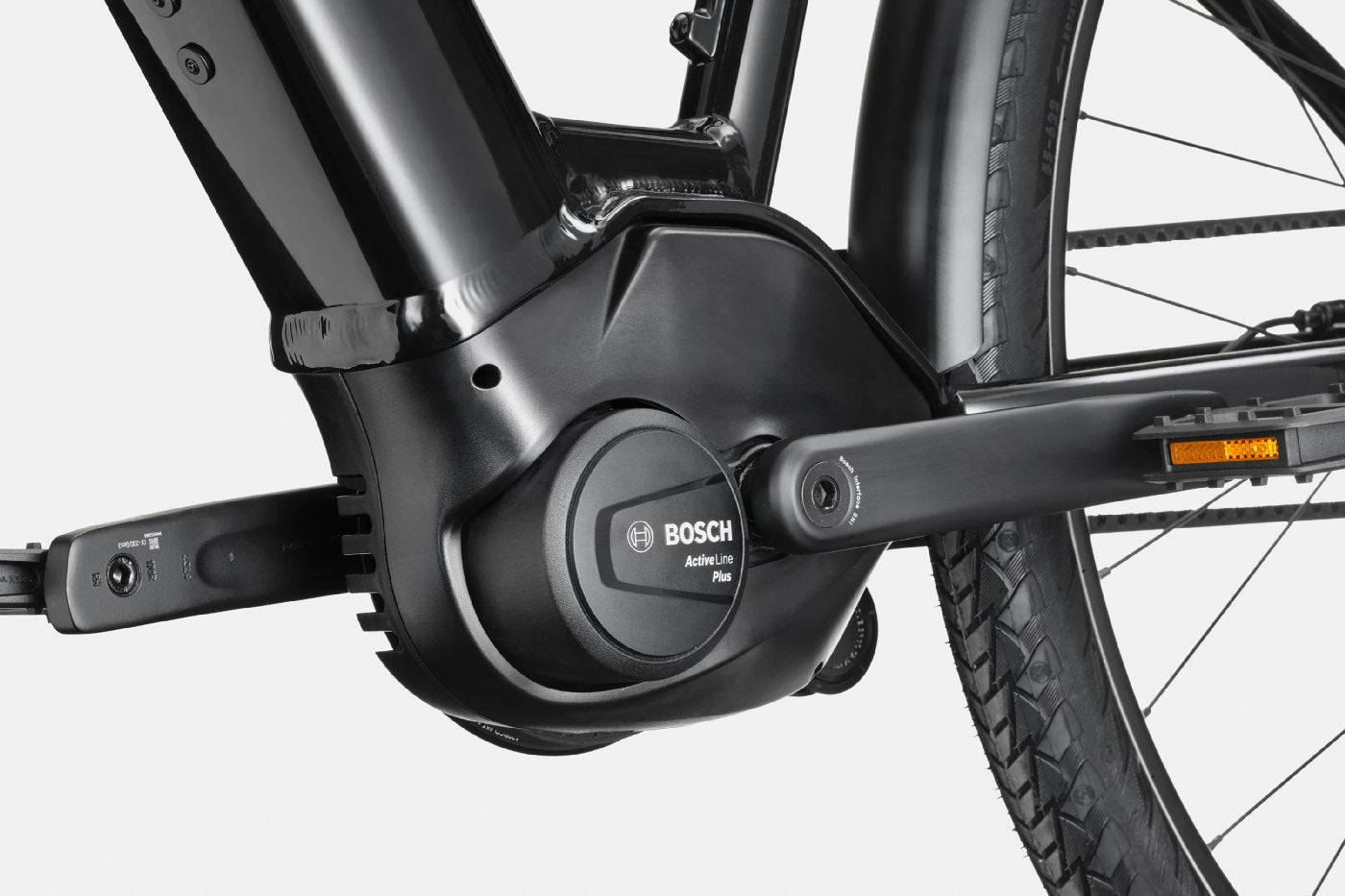

| Motor | Bosch Active Line Plus 4.0 Smart |
| Motorposition | Mitte |
| Drehmoment in Nm | 50 Nm |
| Akkuposition | voll integriert, Akku herausnehmbar |
| Akku Kapazität | 13,4 Ah |
| Display | Bosch Purion 200 |
| Ladegerät | Bosch Compact Charger 2A |
| Höchstgeschwindigkeit | 25 km/h |
| Antrieb | |
| Rücktritt / Freilauf | Freilauf |
| Schaltart | Nabenschaltung |
| Anzahl Gänge | 5 |
| Schaltwerk | Shimano Nexus Inter-5E, 5-speed internal gear hub |
| Schalthebel | Shimano Nexus Revoshift, 5-speed twist shifter |
| Kette / Riemen | Riemen |
| Kette | Gates CDC carbon drive belt |
| Kasette | Gates CDC, 34T |
| Kurbelsatz | Gates Bosch E-bike, w/ 46T sprocket |
| Pedale | Cannondale Fitness |
| Bremsen | |
| Bremsentyp | Scheibenbremse hydraulisch |
| Bremse vorne | Shimano MT200 hydraulic disc, 180 RT30 rotors |
| Bremse hinten | Shimano MT200 hydraulic disc, 160mm RT30 rotors |
| Bremshebel vorne | Shimano MT200 hydraulic disc |
| Bremshebel hinten | Shimano MT200 hydraulic disc |
| Rahmen | |
| Rahmenform | Herren |
| Rahmen | Mavaro Low Step-Thru, SmartForm C2 Alloy, removable downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
| Gabel | SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset |
| Komponenten | |
| Griffe | Ergon GC10 |

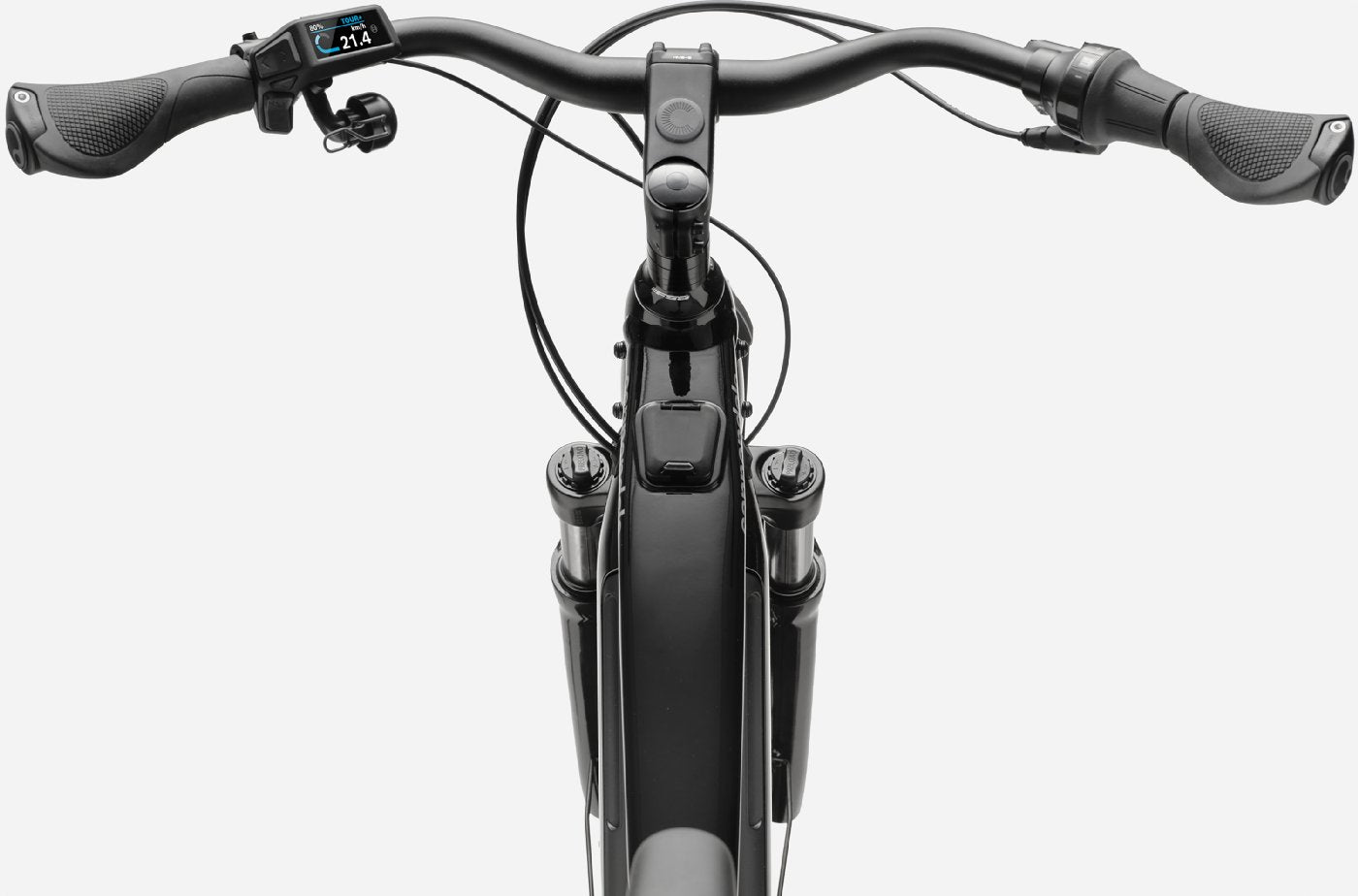

| Lenker | Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm |
| Vorbau | Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, 70mm, +6°, w/ SP Connect SPC+ Stem Mount |
| Steuersatz | Semi-Integrated, Tapered; 1-1/8"-1-1/2" |
| Sattel | Selle Royal Nuvola |
| Sattelstütze | Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (XL) |
| Herstellerfreigabe für Anhänger | ja |
| Räder und Naben | |
| Radgröße | 29" |
| Reifen vorne | Continental eContact Plus w/ reflective sidewalls , 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S) |
| Reifen hinten | Continental eContact Plus w/ reflective sidewalls , 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S) |
| Felgen | Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
| Speichen | Stainless Steel, 14g |

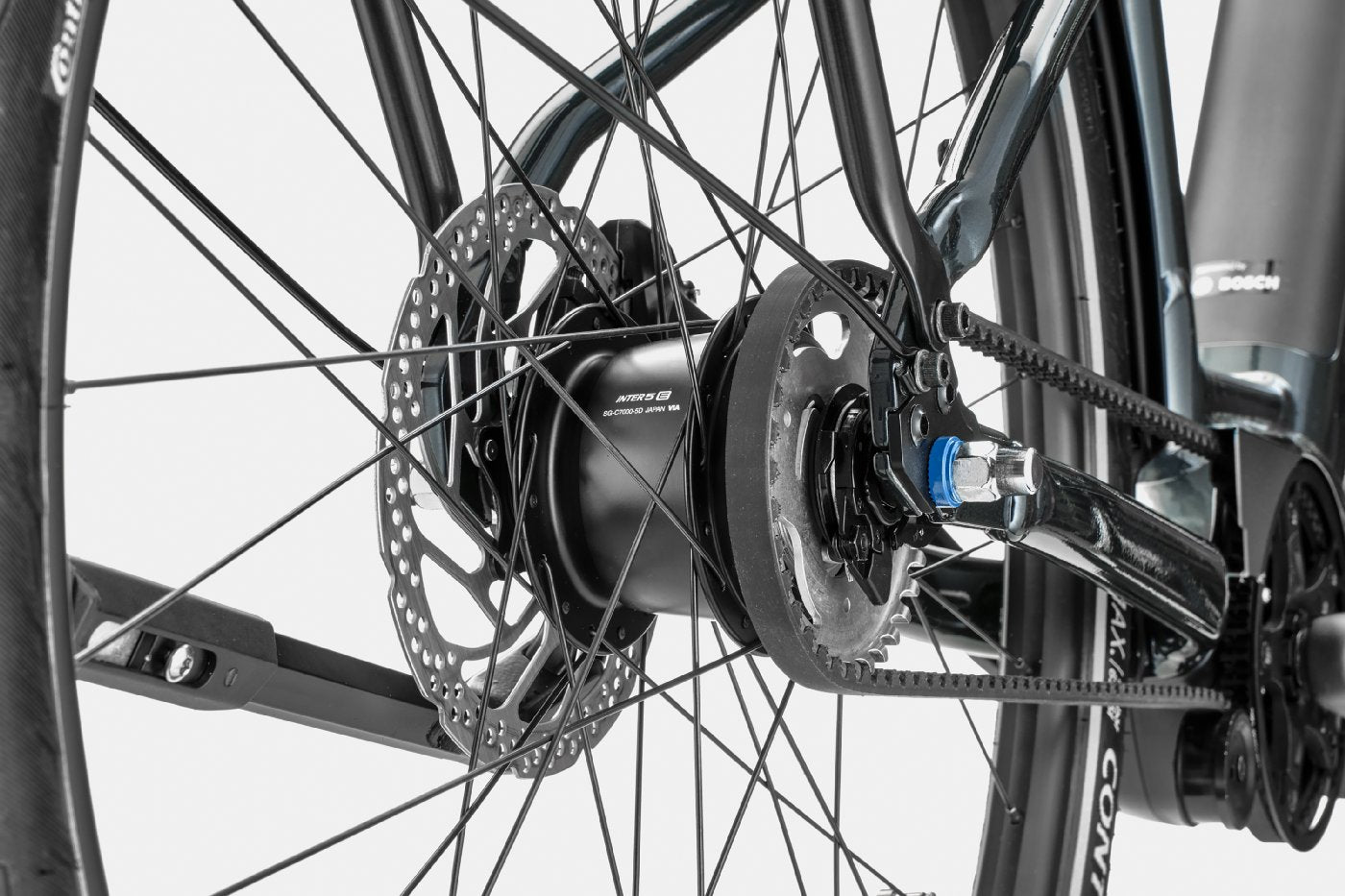

| Naben | vorne: Shimano TC500, 15x110mm thru-axle / hinten: Shimano Nexus Inter-5E, 5-speed internal gear hub |
| Beleuchtung | |
| Scheinwerfer | Axa Compactline 35E |
| Rücklicht | Axa Blueline |
| Schutze und Gepäckträger | |
| Schloss | Abus framelock (key-matched with battery lock) |
| Schutzbleche | full-coverage fenders |

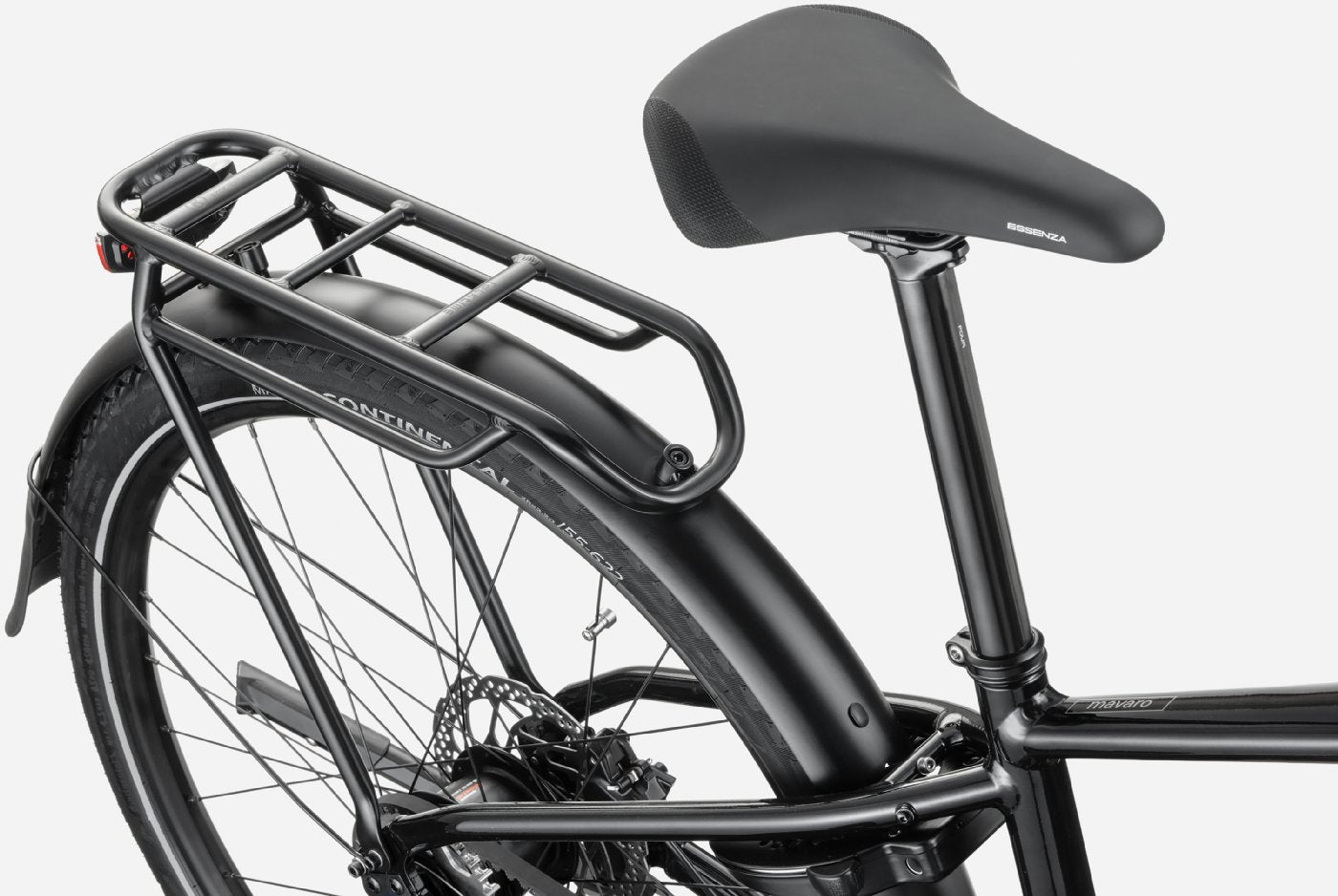

| Gepäckträger | Tubus rear rack (25kg, Racktime SnapIt 1.0 compatible) |
| Gewichte | |
| zulässiges Gesamtgewicht mit Fahrer und Zuladung | 150 kg |
