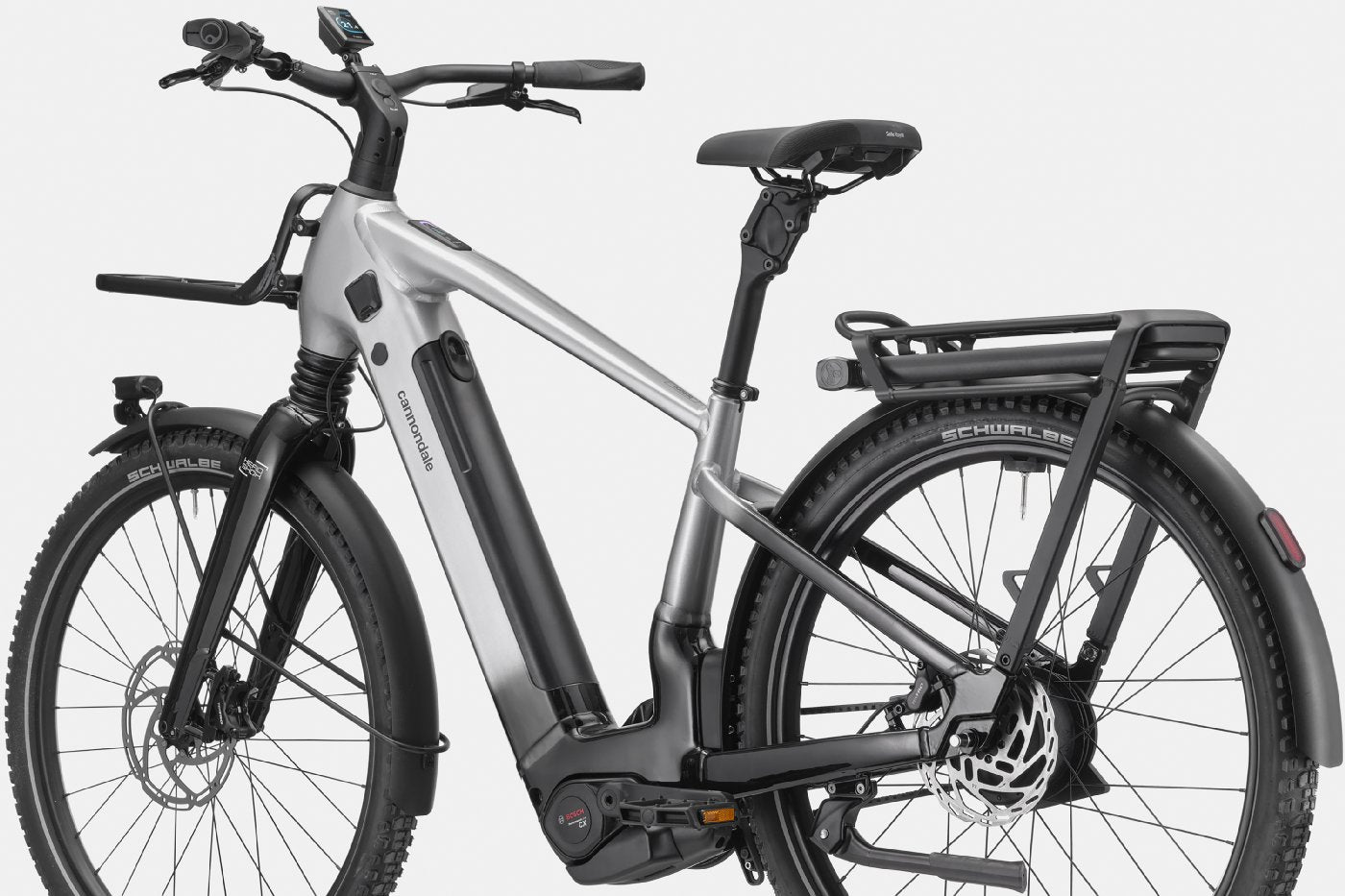

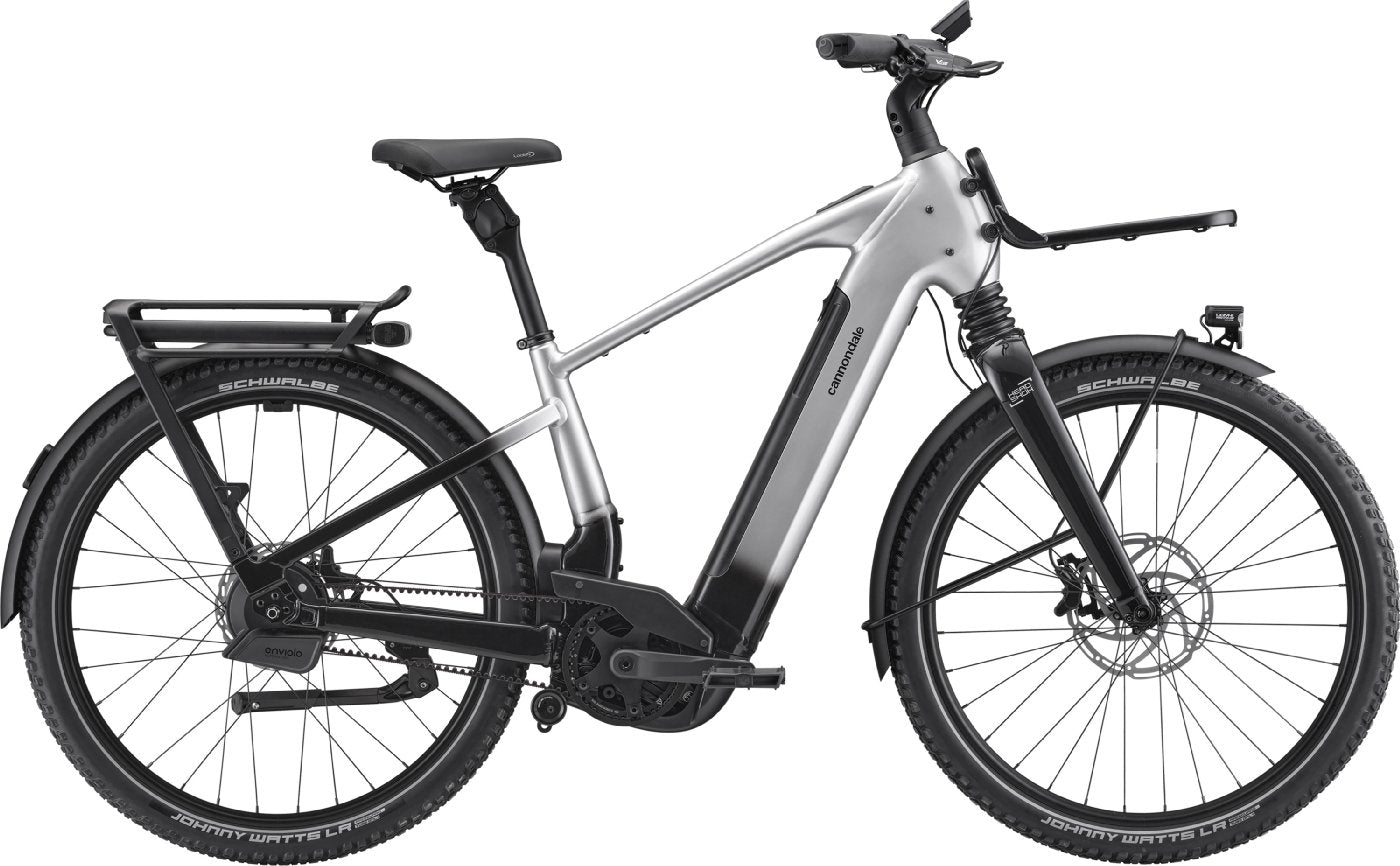

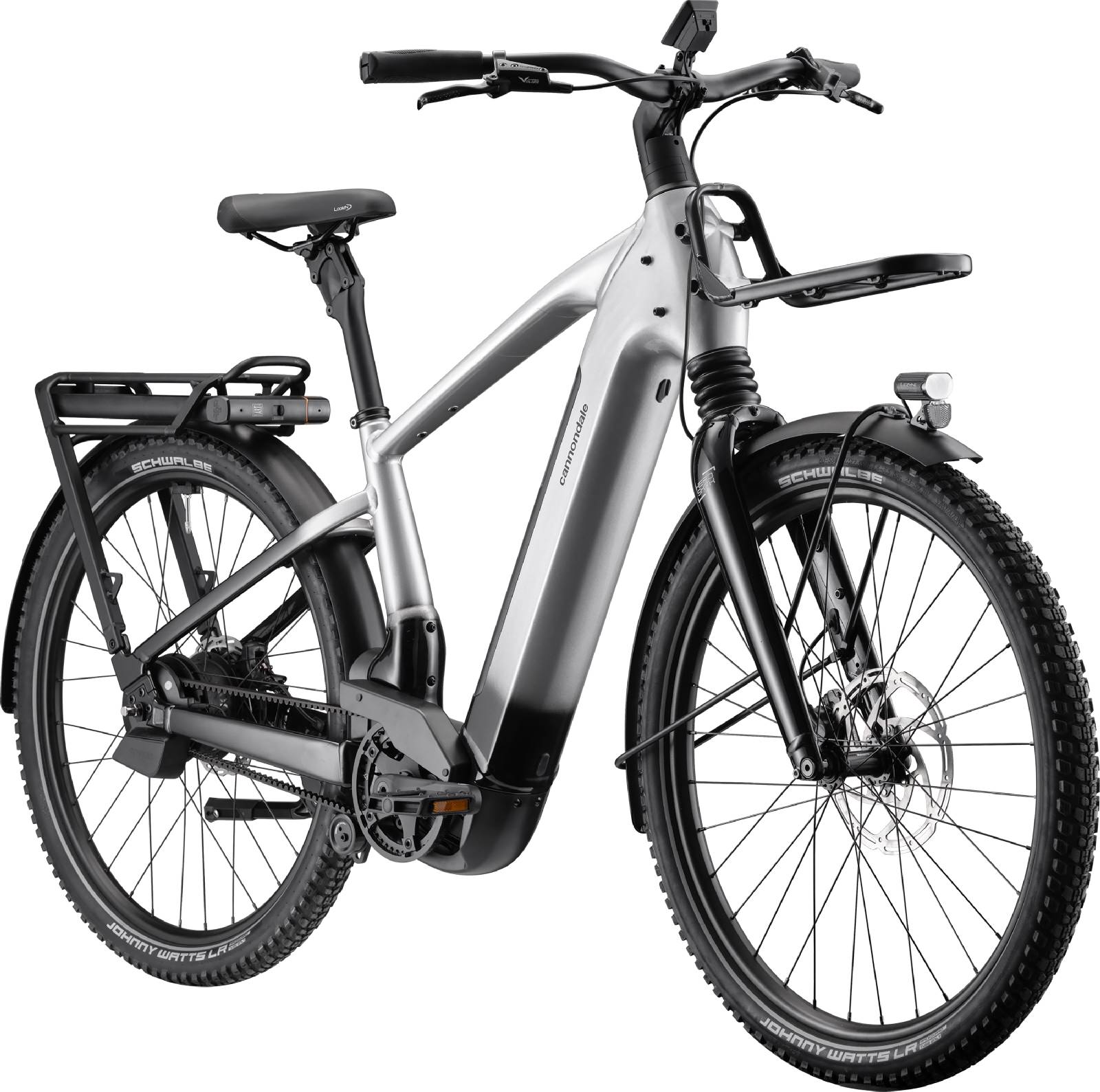

Technische Daten
| Motor und Akku | |

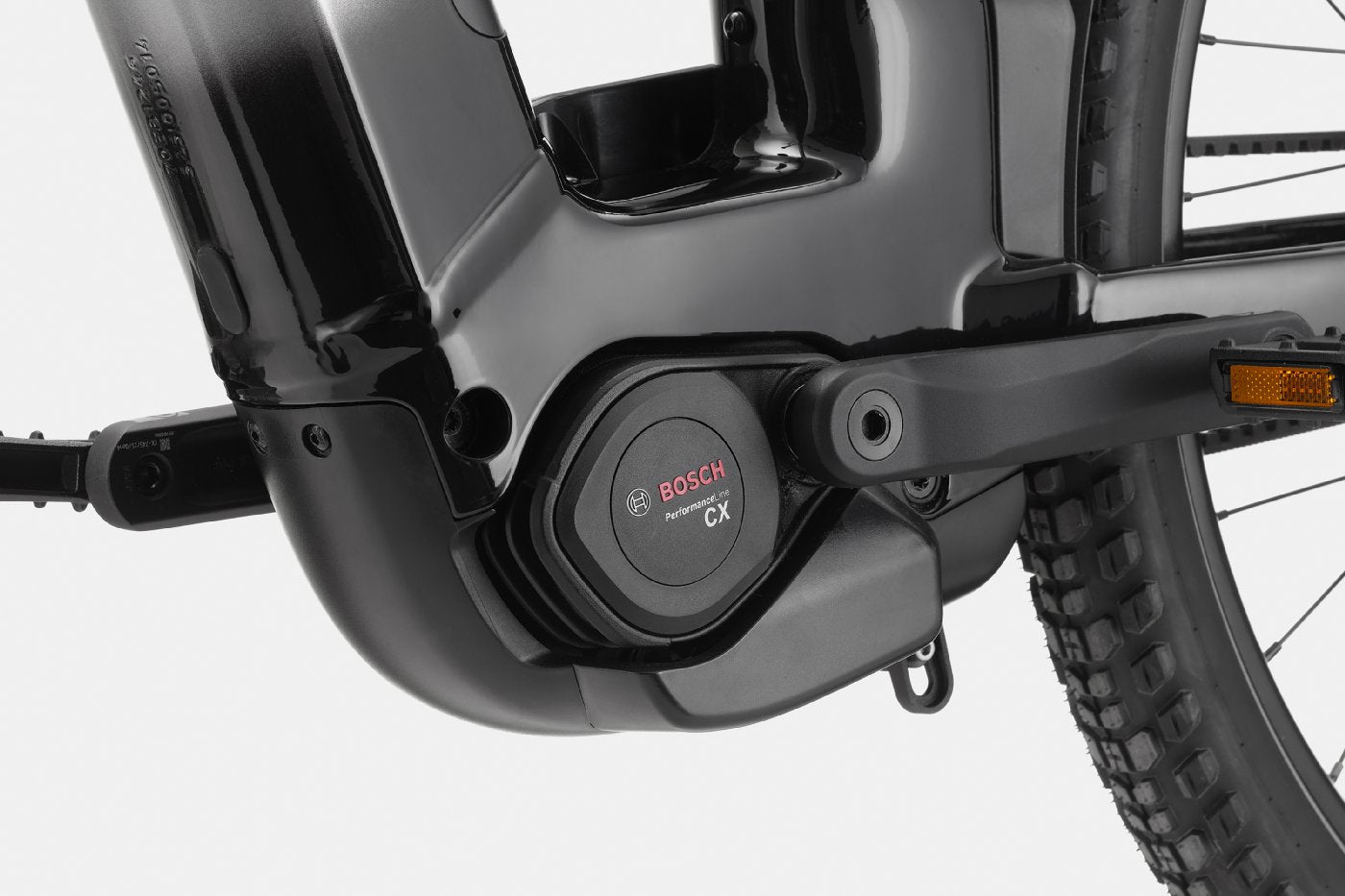

| Motor | Bosch Performance Line CX Smart Gen. 5 |
| Motorposition | Mitte |
| Drehmoment in Nm | 85 Nm |
| Akkuposition | voll integriert, Akku herausnehmbar |
| Akku Kapazität | 22,2 Ah |

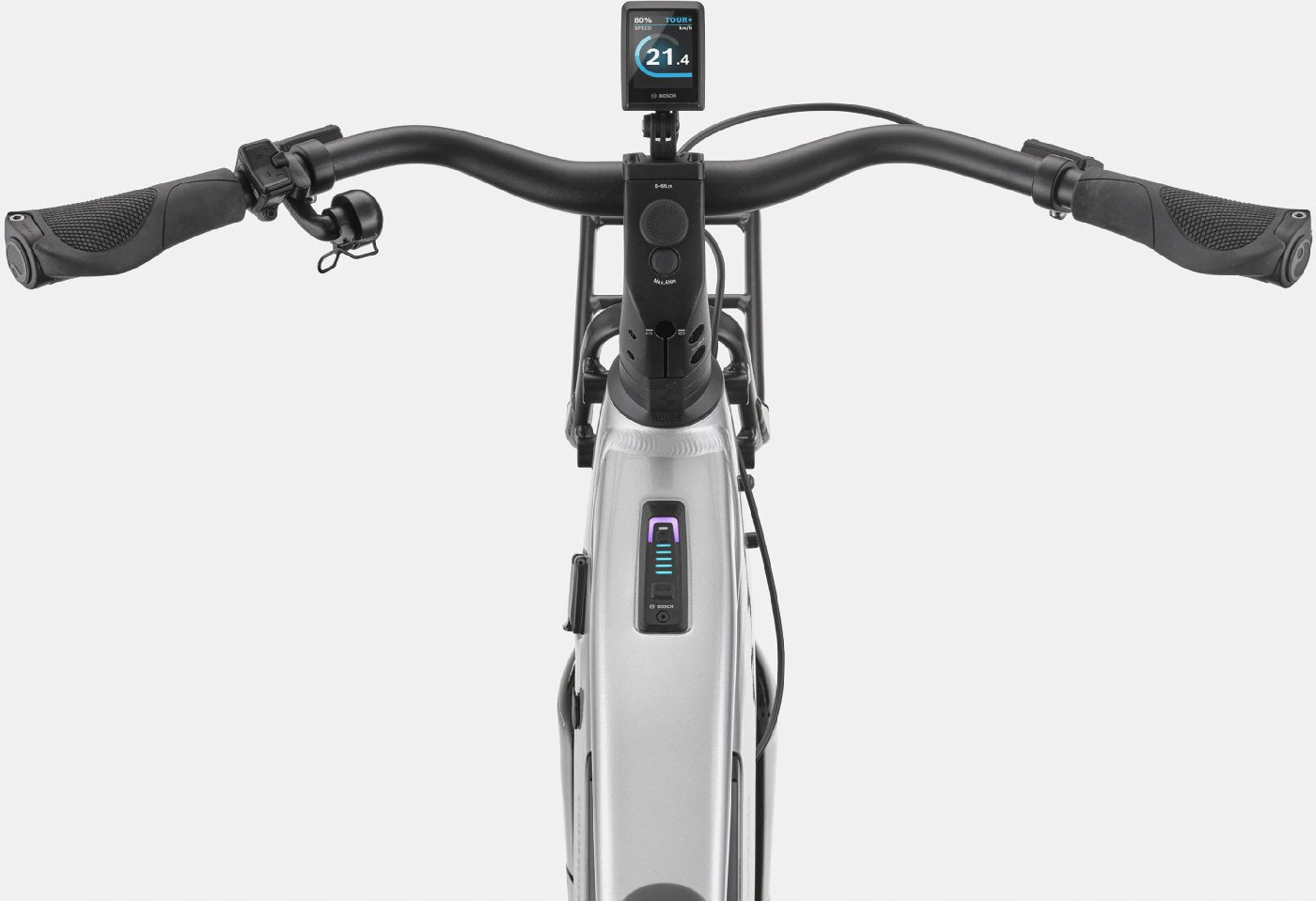

| Display | Bosch Kiox 300 |
| Bedieneinheit | Bosch LED Remote |
| Ladegerät | Bosch Standard Charger 4A |
| Höchstgeschwindigkeit | 25 km/h |
| Antrieb | |
| Rücktritt / Freilauf | Freilauf |
| Schaltart | Nabenschaltung |
| Anzahl Gänge | stufenlos |

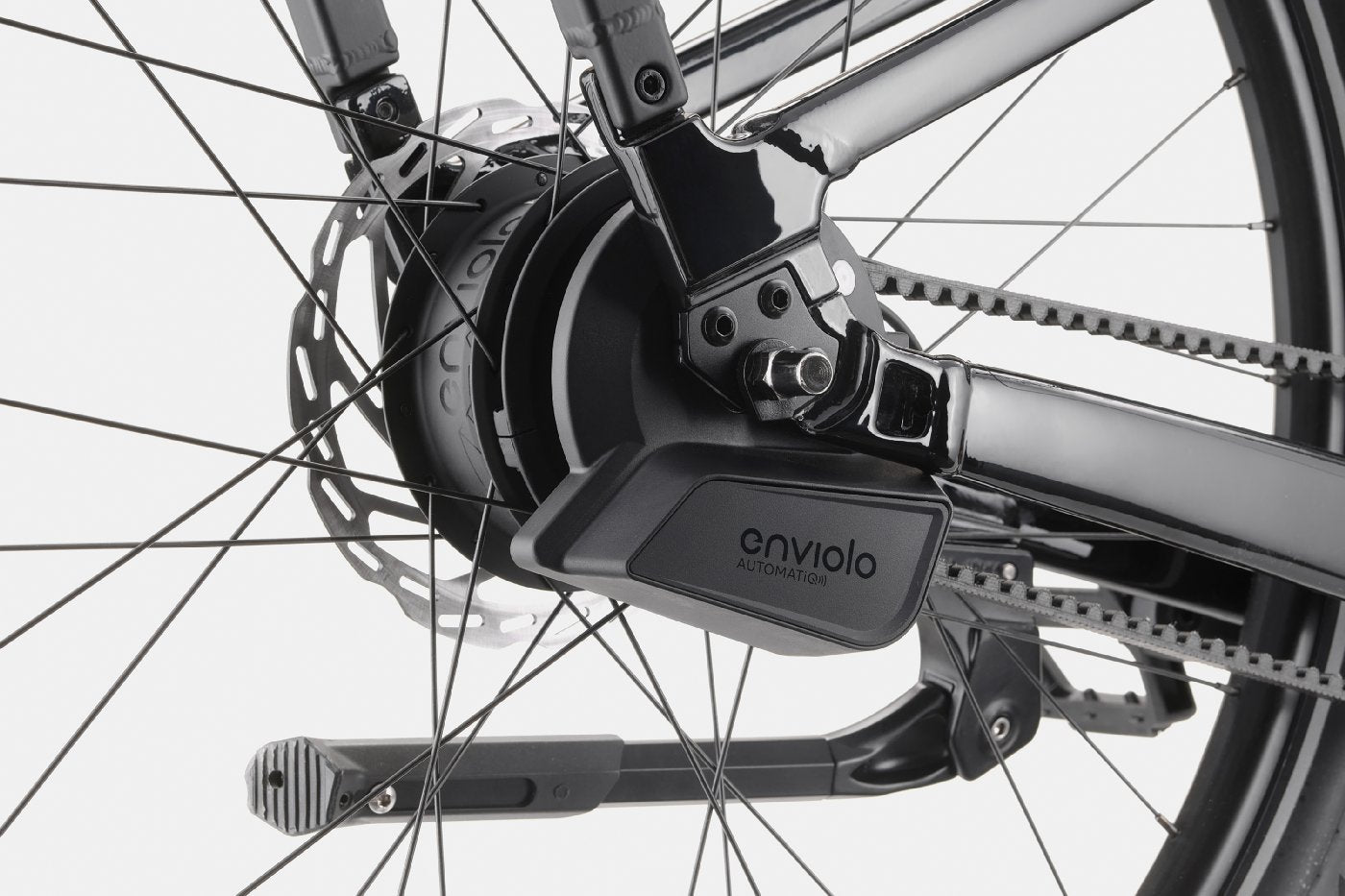

| Schaltwerk | Enviolo HD, continuously variable transmission, wide range internal hub - 100Nm compatible, with Automatiq shifting |
| Kette / Riemen | Riemen |
| Kette | Gates CDX high performance carbon drive belt |
| Kasette | Gates CDX, 22T |
| Kurbelsatz | Gates Bosch E-bike, w/ 46T sprocket |
| Pedale | Cannondale Urban Platform |
| Bremsen | |
| Bremsentyp | Scheibenbremse hydraulisch |
| Bremse vorne | Tektro T535 4-piston hydraulic disc, 203 mm TR rotors |
| Bremse hinten | Tektro T535 4-piston hydraulic disc, 180 mm TR rotors |
| Bremshebel vorne | Tektro M535 hydraulic disc |
| Bremshebel hinten | Tektro M535 hydraulic disc |
| Rahmen | |
| Rahmenform | Herren |
| Rahmen | Tesoro, SmartForm C1 Alloy, tapered headtube, internal cable routing, 135mm QR hub spacing, post mount disc brake, motor protection, integrated RackLock rack and fender - RackTime SnapIt 2.0 and child seat compatible |
| Gabel | Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle |
| Komponenten | |
| Griffe | Ergon GC10 |
| Lenker | Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm |
| Vorbau | Cannondale Urban w/ Intellimount, Alloy, 31.8mm clamp, 60mm, +30°, Acros ICR, w/ SP Connect SPC+ Stem Mount & Kiox mount |
| Steuersatz | Acros integrated cable routing, 1.8" sealed bearings with tapered reducers |
| Sattel | Selle Royal Essenza |
| Sattelstütze | Parallelogram Suspension Seatpost, 31.6, 27mm travel, 350mm (MD), 400mm (LG, XL) |
| Räder und Naben | |
| Radgröße | 29" |
| Reifen vorne | Schwalbe Johnny Watts LR, 27.5x2.35" 60-584 (MD), 29x2.35" 60-622 (LG, XL) |
| Reifen hinten | Schwalbe Johnny Watts LR, 27.5x2.35" 60-584 (MD), 29x2.35" 60-622 (LG, XL) |
| Felgen | Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
| Speichen | Stainless Steel, 14g |
| Naben | Vorne: Shimano TC500, 15x110mm thru-axle / hinten: Enviolo 380 Automatiq, 100Nm compatible, heavy duty continuously variable transmission internal gear hub with automatic shifting, 135x10mm |
| Beleuchtung | |
| Scheinwerfer | Lezyne Foresite E350 |
| Rücklicht | SuperNova TL3-Z with integrated reflector |
| Schutze und Gepäckträger | |

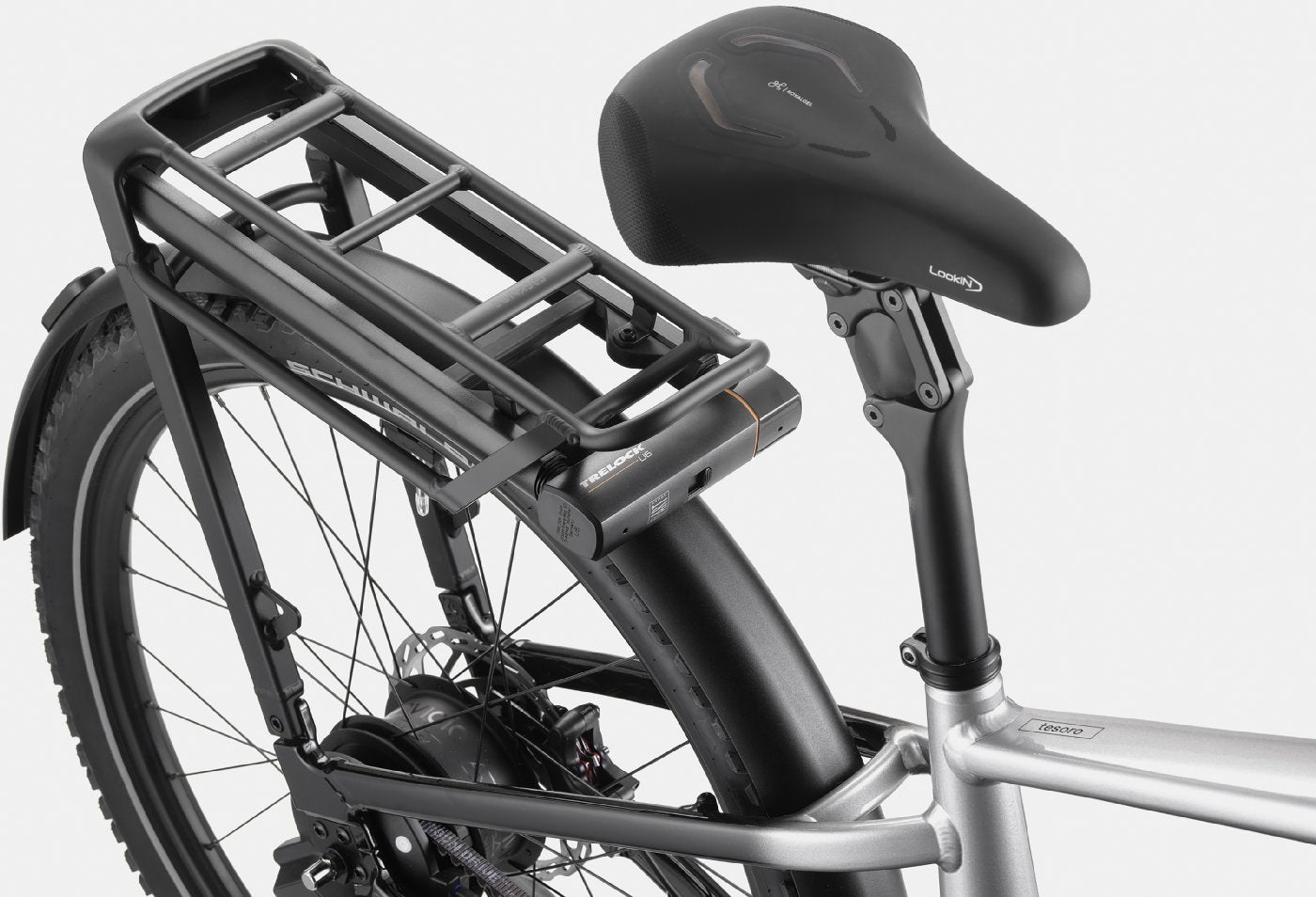

| Gepäckträger | RackLock rear rack (27kg, Racktime SnapIt 2.0 & child seat compatible), with integrated extra-large Trelock U-Lock (key-matched with battery lock) |
| Gepäckträger vorne | OutFront Racktime front rack |
| Gewichte | |
| zulässiges Gesamtgewicht mit Fahrer und Zuladung | 138 kg |
