Technische Daten
| Motor und Akku | |

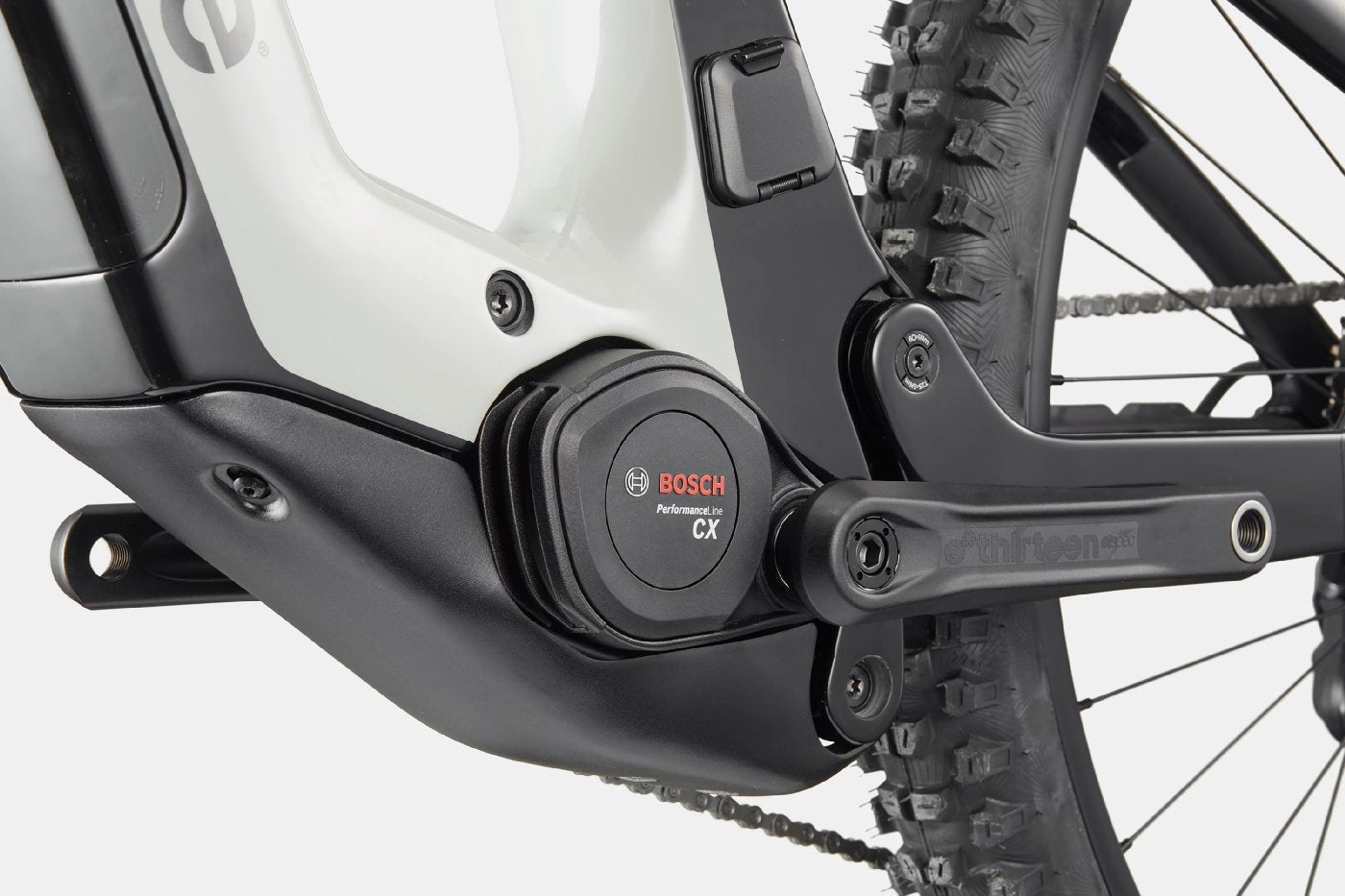

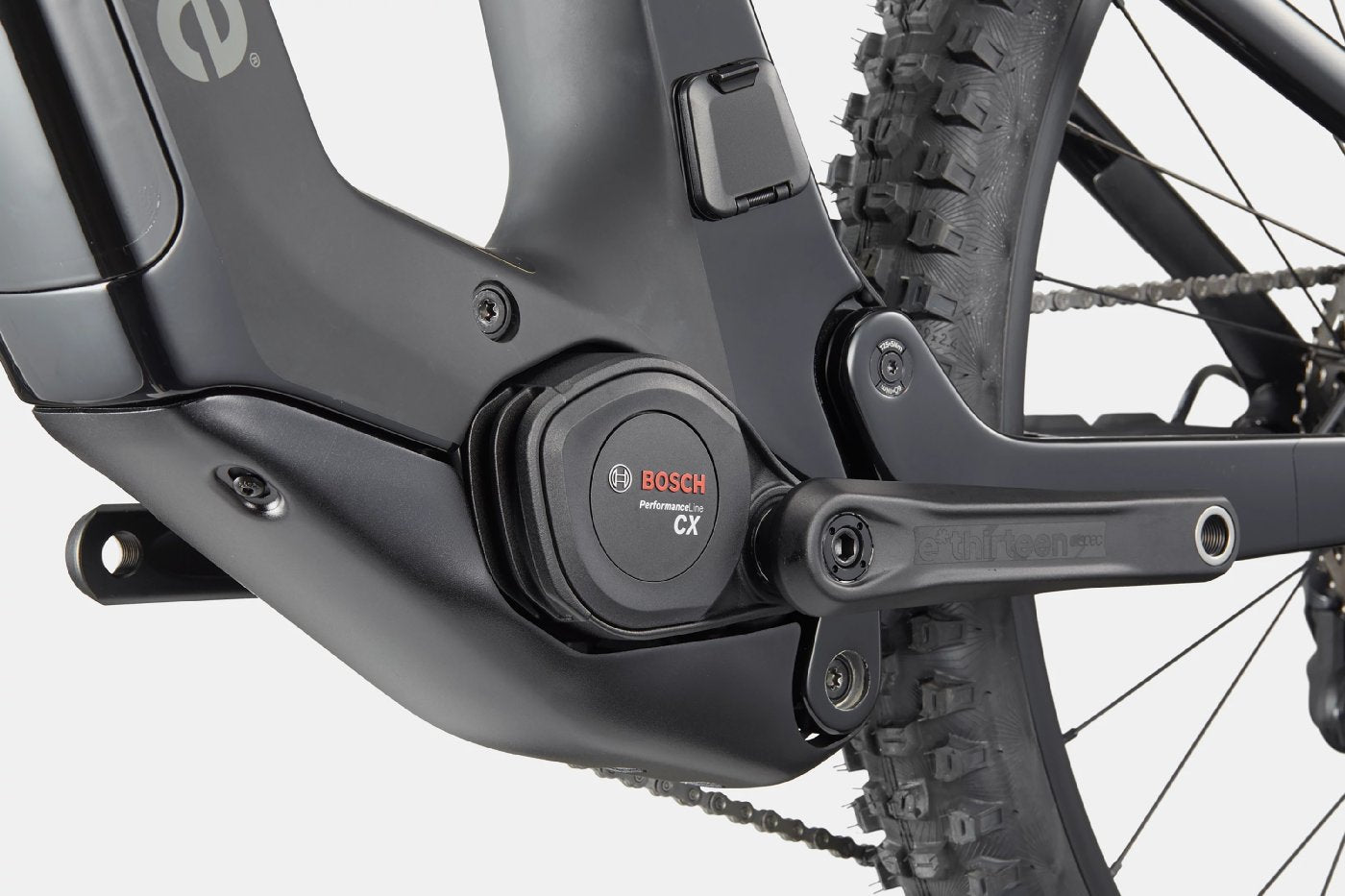

| Motor | Bosch Performance Line CX Smart Gen. 5 |
| Motorposition | Mitte |
| Drehmoment in Nm | 85 Nm |
| Akkuposition | voll integriert, Akku herausnehmbar |
| Akku Kapazität | 22,2 Ah |

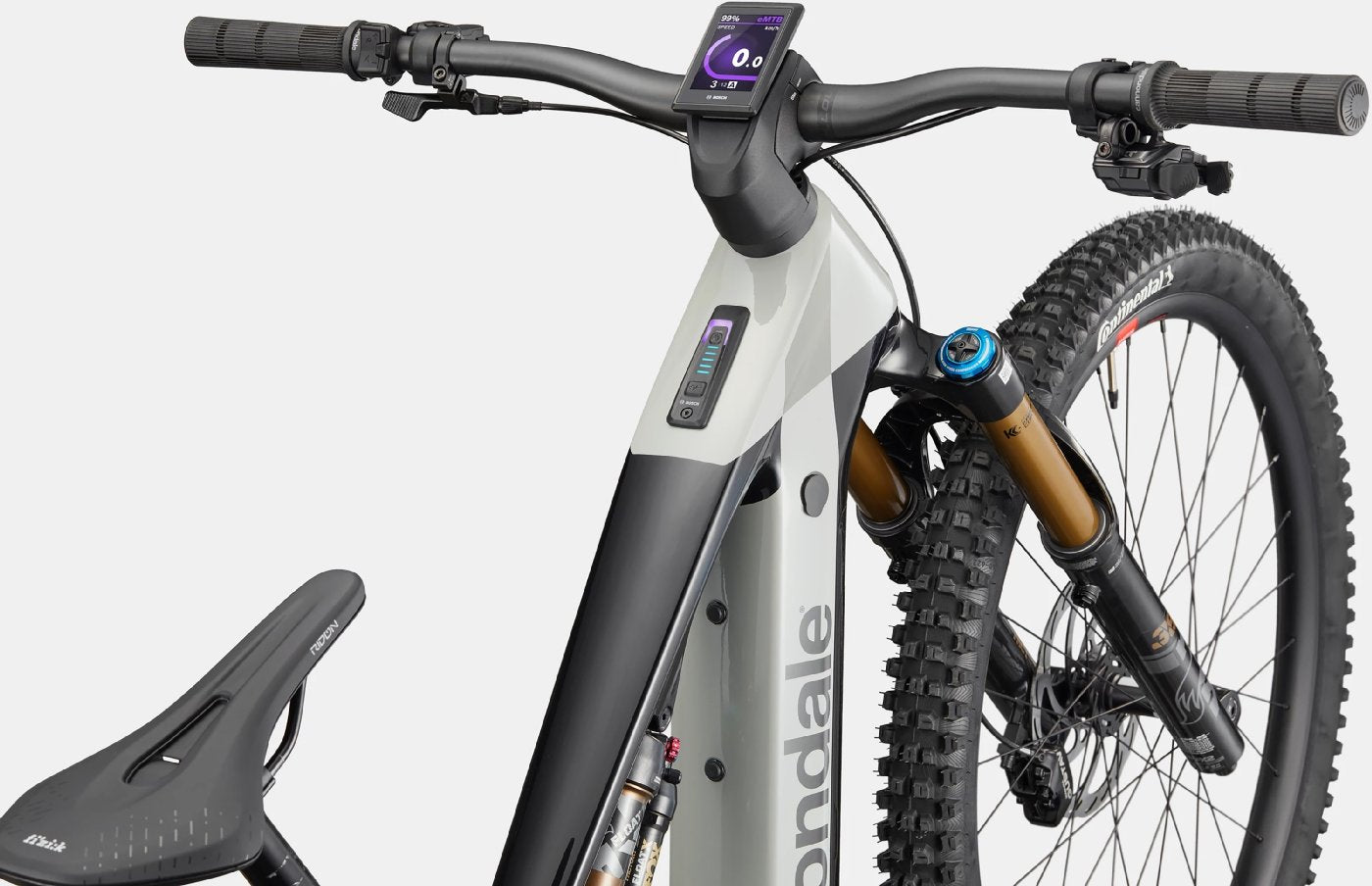

| Display | Bosch Kiox 500 |
| Höchstgeschwindigkeit | 25 km/h |
| Antrieb | |
| Rücktritt / Freilauf | Freilauf |
| Schaltart | Kettenschaltung |
| Anzahl Gänge | 11 |

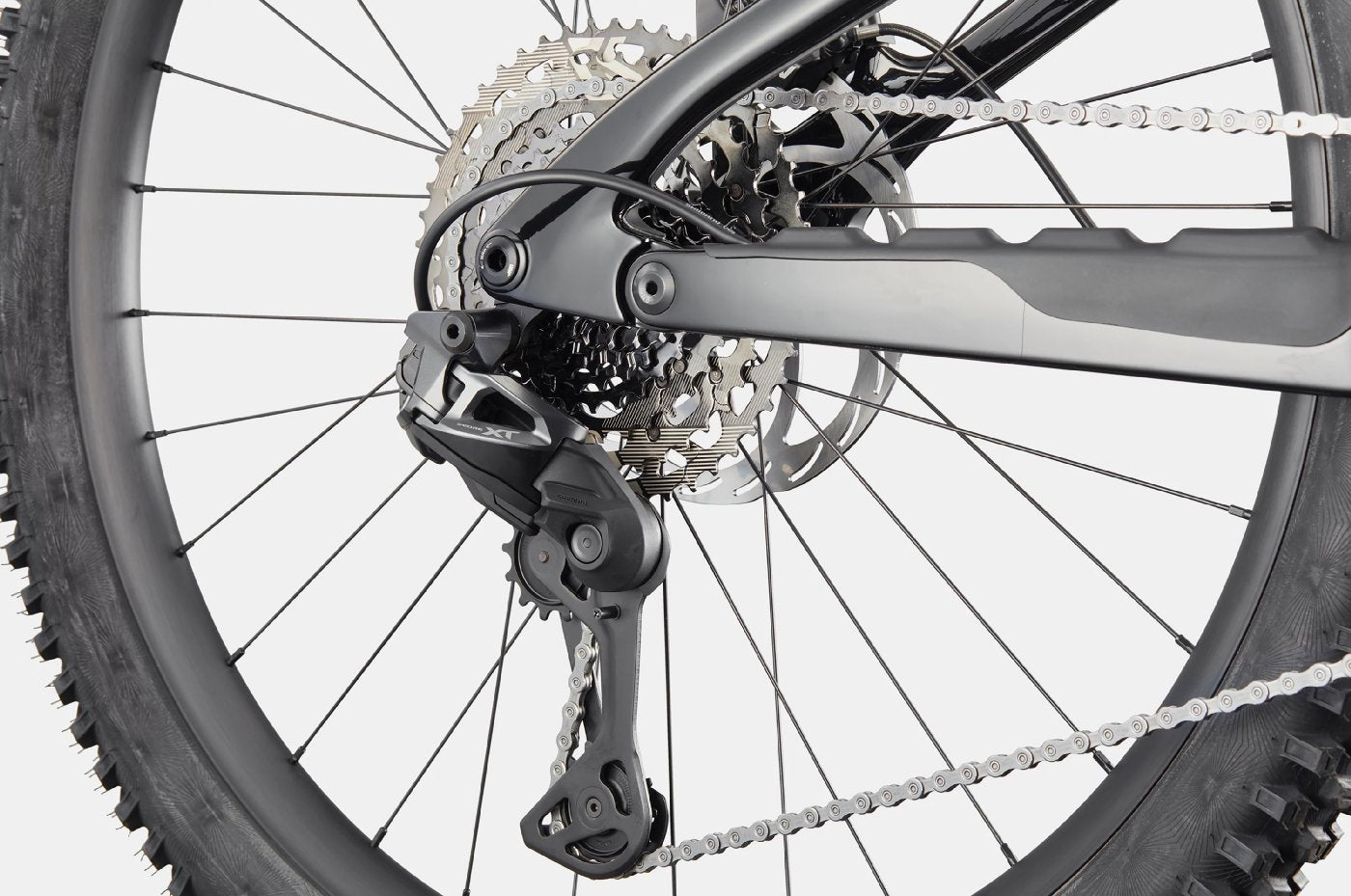

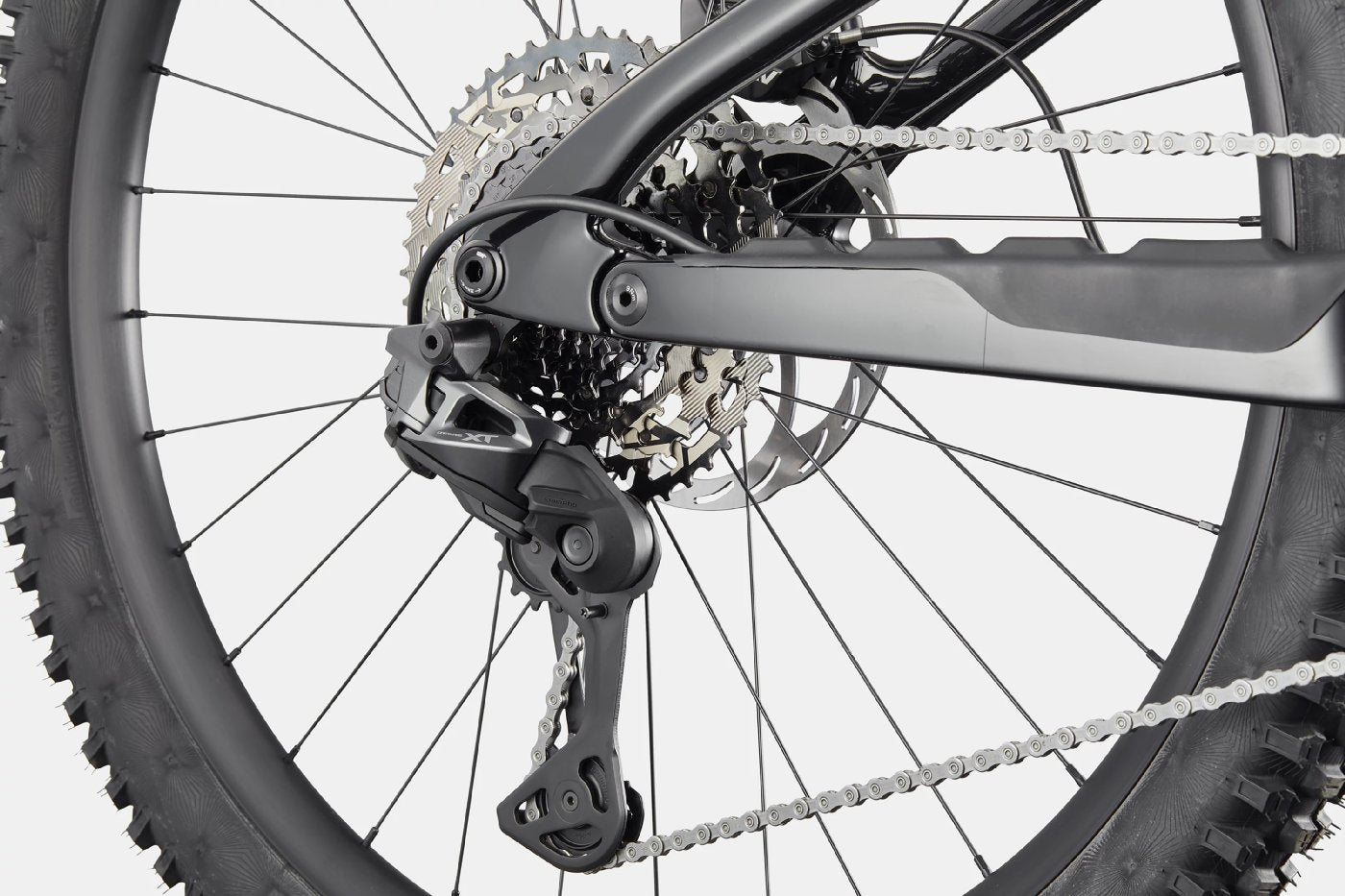

| Schaltwerk | SRAM XO Eagle AXS, T-Type |
| Schalthebel | SRAM Eagle AXS T-Type Pod Controller |
| Kette / Riemen | Kette |
| Kette | SRAM GX T-Type, 12-speed |
| Kasette | SRAM GX Eagle T-Type, 10-52, 12-speed |
| Kurbelsatz | e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T |
| Pedale | Not Included |
| Bremsen | |
| Bremsentyp | Scheibenbremse hydraulisch |
| Bremse vorne | Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors |
| Bremshebel vorne | Magura MT7 hydraulic disc |
| Rahmen | |
| Rahmenform | Fully |

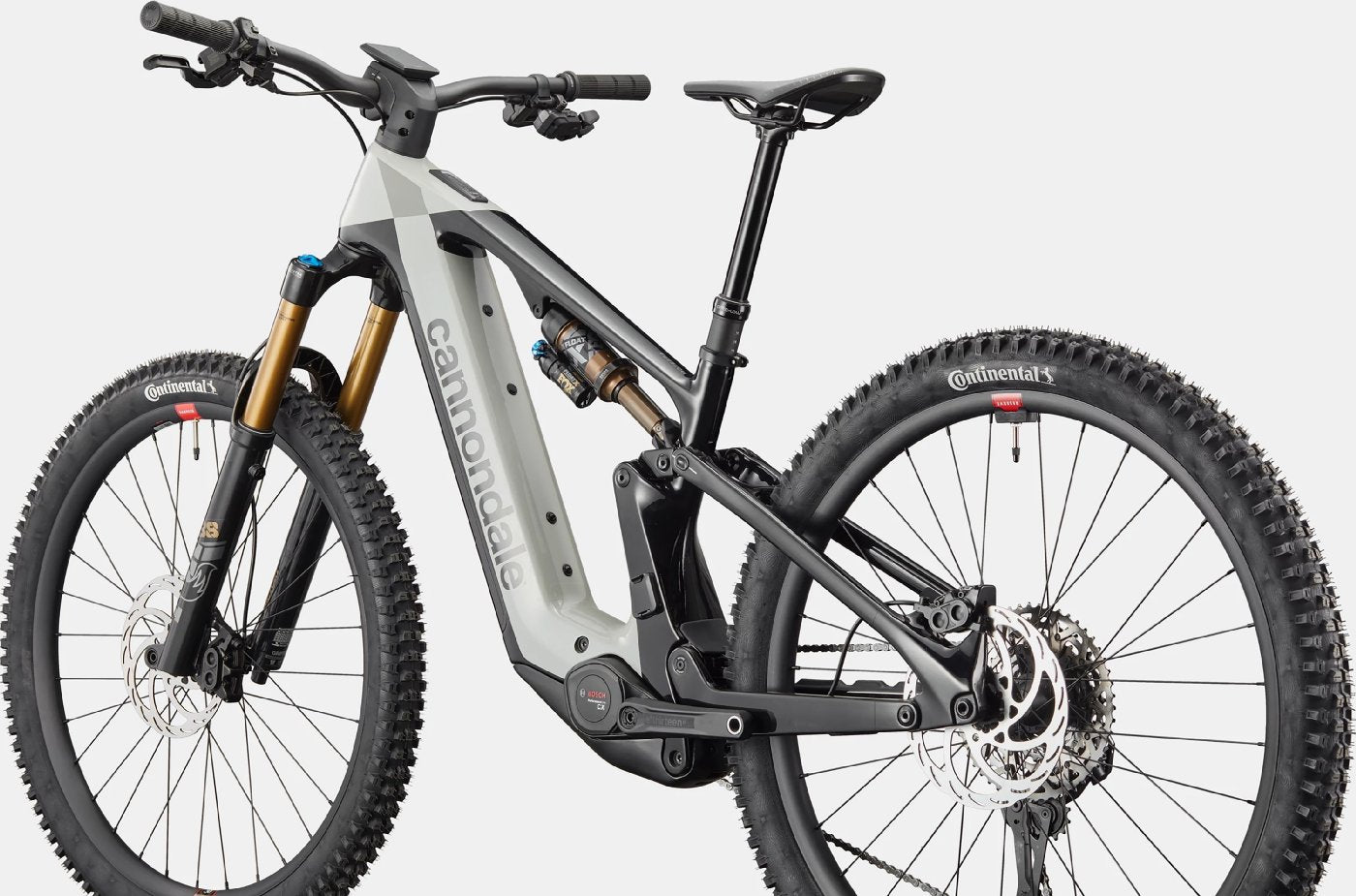

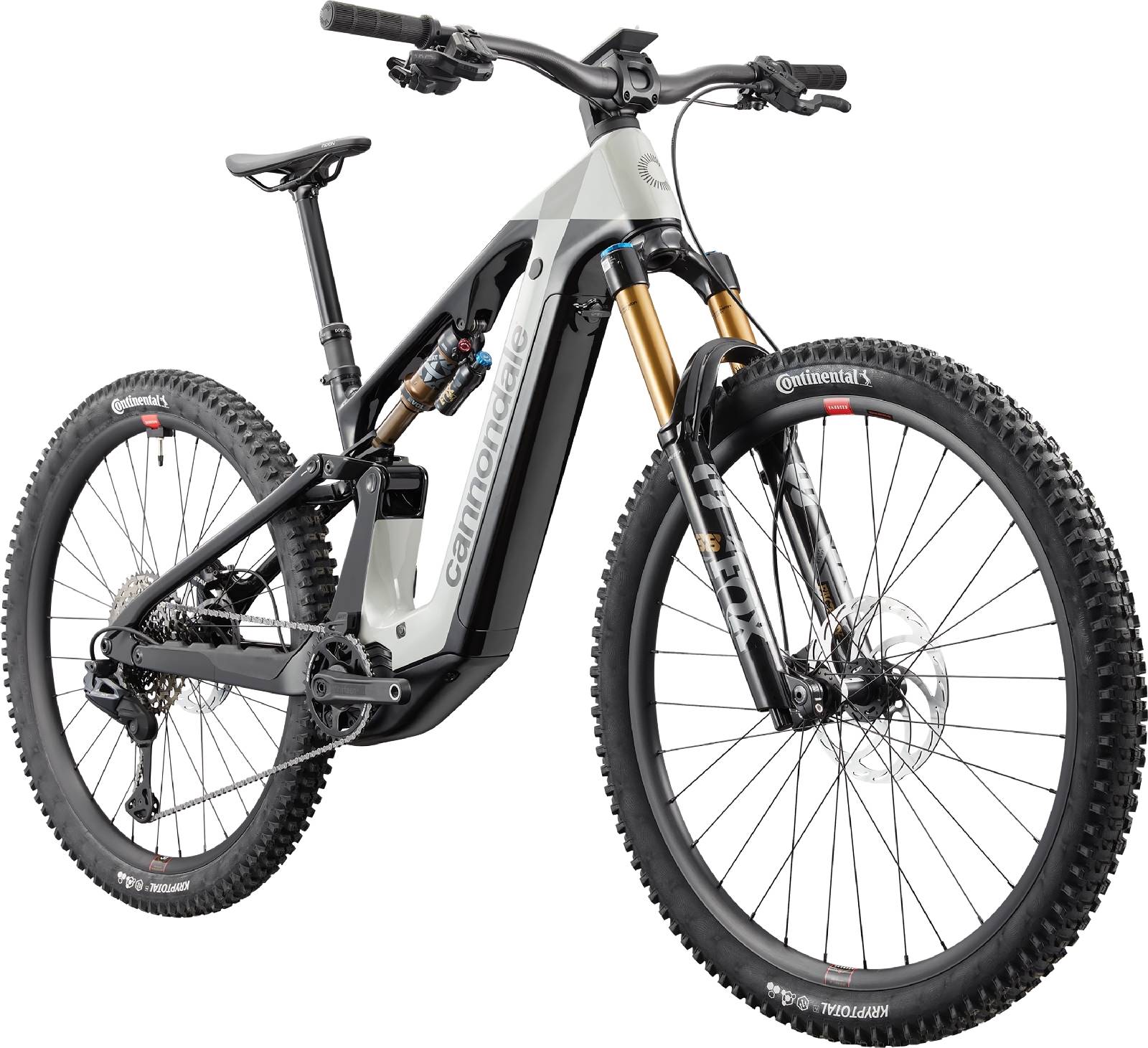

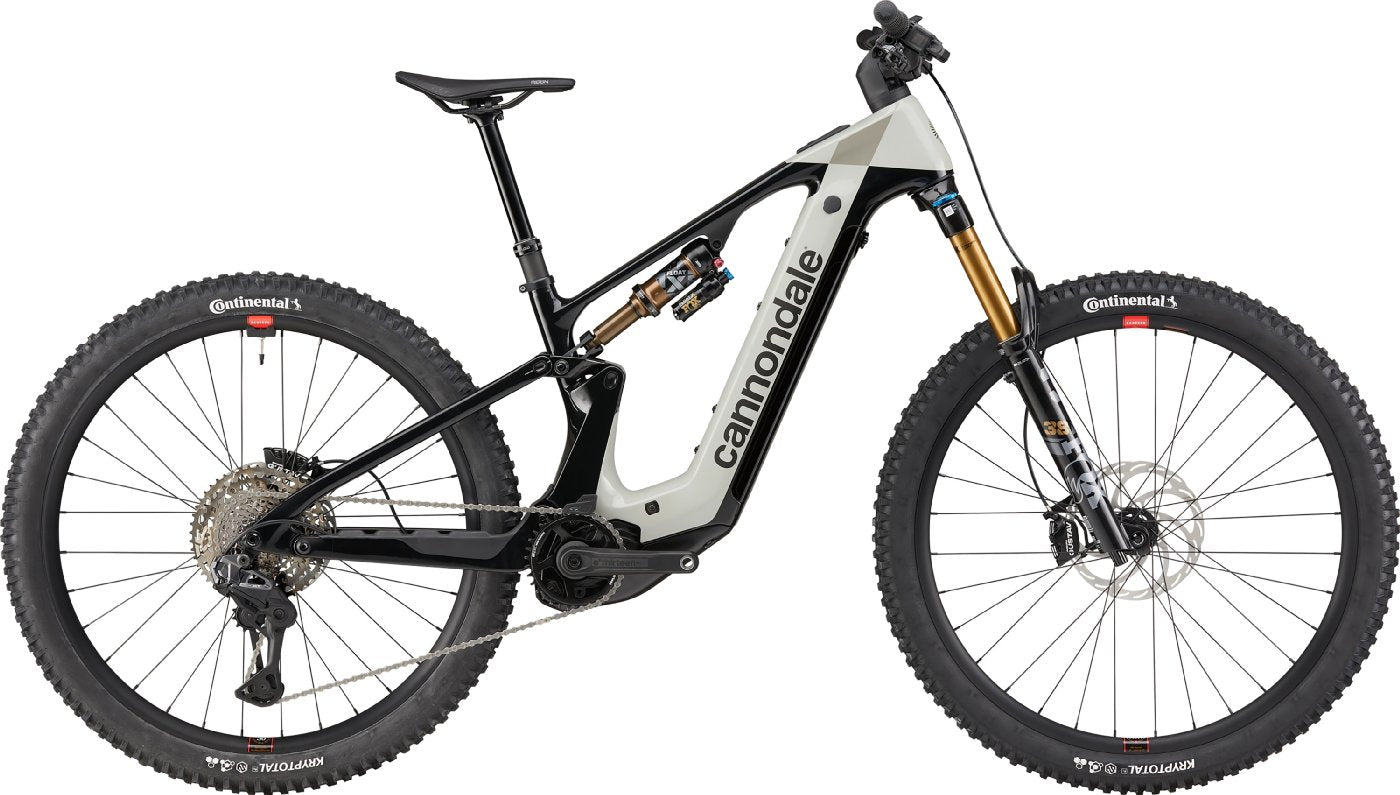

| Rahmen | Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtu |
| Gabel | Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |
| Dämpfer | Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm |
| Komponenten | |
| Griffe | Cannondale TaperRidge |
| Lenker | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Vorbau | Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0° |
| Steuersatz | Acros ICR, 1.5" to 1.8", sealed bearings |
| Sattel | Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
| Sattelstütze | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Räder und Naben | |
| Radgröße | 29" |
| Reifen vorne | vorne: Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / hinten: Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Felgen | DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready) |
| Speichen | DT Swiss Competition, straight pull |
| Naben | Vorne: DT Swiss 370, 15x110mm thru-axle / hinten: DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt |
| Gewichte | |
| zulässiges Gesamtgewicht mit Fahrer und Zuladung | 138 kg |
